52mm Gauge

Free Setup App

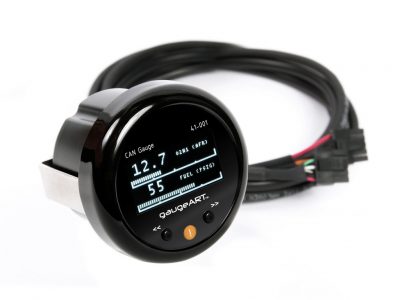

The gaugeART CAN Gauge is an innovative compact OLED gauge for displaying real-time data from your engine management system. Supported parameters such as boost pressure, air/fuel ratio, coolant temperature, fuel pressure, ethanol content, etc. can be displayed without additional sensors.

Set trigger points such as maximum coolant temperature to warn the driver when the engine is overheating. The gaugeART CAN Gauge is compatible with popular aftermarket engine control units (see list below) as well as with factory ECUs that have CAN communication in the OBD port using the gaugeART CAN OBD Link (sold separately).

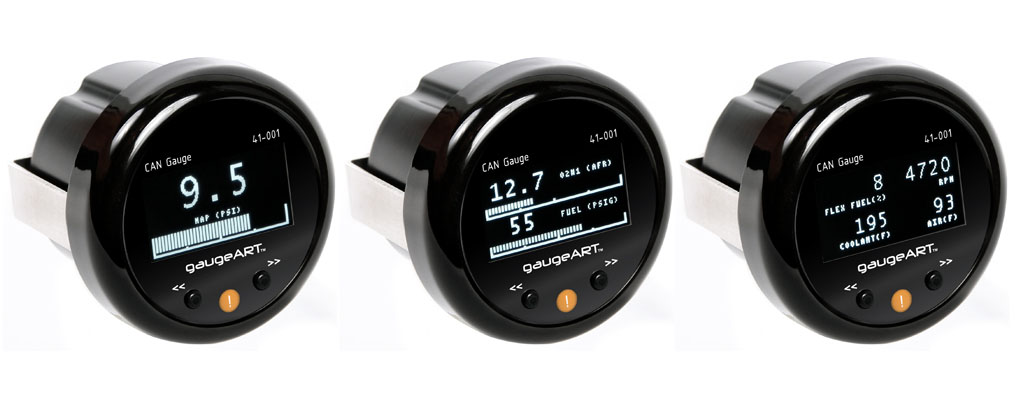

The high contrast OLED display is bright for interior use and dims at night. Configure 1, 2, or 4 gauge layouts on up to 10 different pages. Create customizable warning points, such as the coolant temperature being too high, which trigger a special warning screen and bright LED on the face of the gauge.

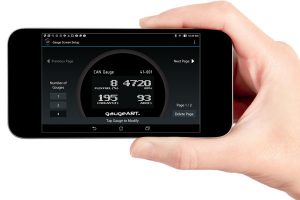

Easily customize your gaugeART CAN Gauge to display the data you want to see with the included gaugeART CAN Gauge App (compatible with Android 4.4 or later and Apple iOS). The easy to use app works with your smartphone or tablet to wirelessly customize your gauge in minutes and is a lot easier than trying to configure your gauge with only buttons on the front! Check out this video to see how easy the configuration process is!

Features:
• multi-function compact 52mm gauge in high quality injection molded housing
• compatible with aftermarket (click for list) & factory ECUs w/ OBD Link
• up to ten configurable 1, 2, or 4 gauge layouts
• configurable low & high warning settings
• configurable gauge name labels (ie. change “MAP” to “Boost”, etc)
• OLED display dims at night when parking lights turn on
• easy wireless configuration by smart phone or tablet with included app
• connect two or more together

gaugeART CAN Gauge cables:
• standard cable: the standard cable is 5′ long and includes two shielded pair 22-GA wires (power, ground, CAN H, and CAN L) and one wire for illumination control. You will need to crimp the terminals and install the
• connector that is appropriate for your ECU.
• ECU specific cables: some ECUs specific CAN connectors. These 5′ long cables have ECU specific terminals and connectors pre-installed. Click here for available ECU specific cables.
• extension cable: if your ECU is more than 5′ away from where your gauge will be mounted – an optional 5′ extension cable (total distance 10′) is available.
• daisy chain cable: if you will be using more than one gaugeART CAN Gauge – an optional 6″ daisy chain cable will link the two gauges together.

compatible ECUs (available channels may vary by ecu):
• Adaptronic (modular ECU, firmware .212 or later)
• AEM EMS Series 2 & AEM EMS 4
• AEM Infinity (requires firmware version 2.96.1 or later)
• ECU Master
• Emerald
• Emtron
• gaugeART Analog to CAN Converter (can be used with OBD Link)
• gaugeART OBD Link (for later model factory ECUs, click here for product detail, can be used with Analog to CAN Converter)
• Haltech (available directly from Haltech with part number HT-061010)
• Hondata KPRO 4 & S300 v3
• Link G4+ & G4x ECUs
• MaxxECU
• Megasquirt MS3
• MoTeC M1 Series
• ProEFI Pro
• Syvecs S6, S6Plus, S8
• TorqByte CM5-LTS (requires firmware v3.0 and separate module from TorqByte)
• ViPec G4+ ECUs
• Wolf EMS

Link G4+ Channel List:
• Lambda 1 (Lambda / AFR)
• Lambda 2 (Lambda / AFR)
• Lambda Target
• MAP (PSIg / KPA)
• Boost Target (kPa / PSIg)
• Fuel Pressure (PSIg / KPA)
• Oil Pressure (PSIg / KPA)
• Inlet Air Temp (ºC / ºF)
• Coolant Temp (ºC / ºF)
• RPM
• Battery Volts (V)
• TPS (%)
• Ethanol Content (%)
• Wheel Speed (KPH / MPH)
• Knock Level 1
• Oil Temp (ºC / ºF)
• Fuel Temperature (ºC / ºF)
• Injector Duty (%)
• Traction Slip
• Lambda Correction 1
• Lambda Correction 2
• Knock Level Global
• Knock Count Global
