Toyota 5SFE Oil Pump (99-02) High Volume
KORacing Products » Toyota MR2 MK2 » Engine Components

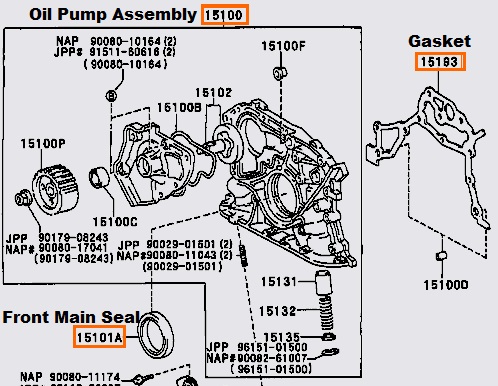

Used on all of KO Racing's high performance Gen 2 3SGTE builds as a higher volume oil pump option for the 3SGTE. Uses a smaller pulley and deeper case to improve total oil volume supply.

Note: using on the 3SGTE requires modification of the tensioner to allow for additional tension on the timing belt due to this pump's smaller drive pulley (one tooth smaller than the original 3SGTE pulley). It needs to have the holes slotted with a rat-tail file or similar operation to take up additional slack. Alternatively you could change the pulley to the 3S pulley, but you would lose the benefit of a faster spinning pulley.

Note: Will not work with Gen 3/4/5 3SGTE Oil pans.

The OEM pump is made for toyota by Aisin. This pump is available also as an Aisin part for significantly less than the Toyota price, yet is the identical manufacturer pump. The only differece is the box it comes in, and Aisin is apparently required to grind the "TOYOTA" lettering off of the pump. Select which name you want on the outside of the box below.

Optional: Add an OEM front main seal and/or a gasket for the pump to mount to the block. These are OEM Toyota gaskets and seals.


$176.00 each
Select Pump:
Add Front Main Seal?:
Add Pump to Block Gasket?:
