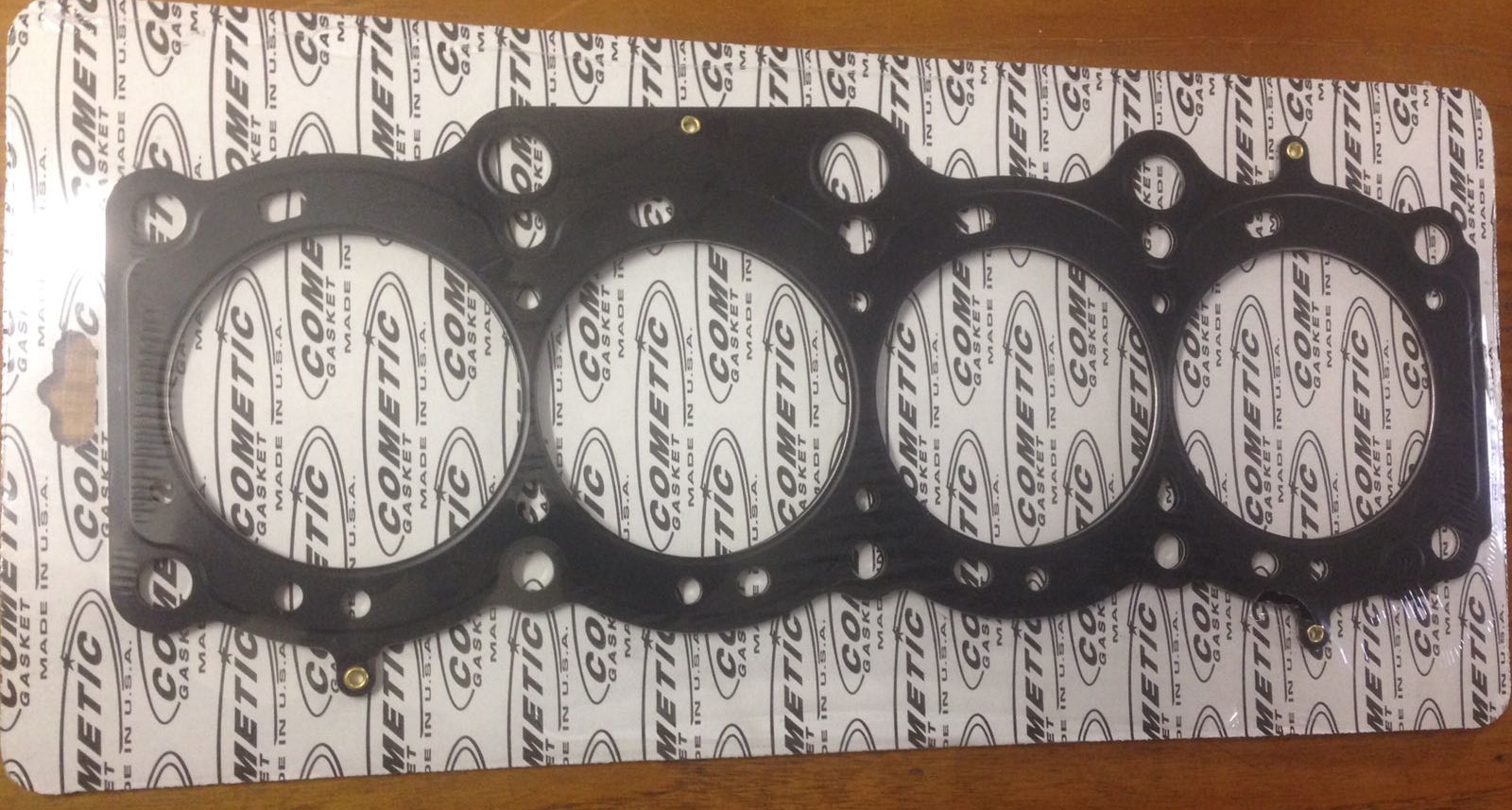

Head Gasket KO Racing Spec 5S/3S Hybrid
KORacing Products » Toyota MR2 MK2 » Engine Components

Custom designed head gasket by KO Racing for use on stroker applications using the 5SFE block (later block with revised water passages) with the gen 2 or gen 3 3SGTE cylinder heads. CAD designed in house by KO Racing to provide improved cooling in higher hp applications as well as improved high RPM oiling. Gasket bore designed to accomodate up to 88mm bore engine size (.040" overbore 5S block).

Manufactured for KO Racing by Cometic.

Please allow 2 weeks for gasket shipment as these are custom ordered. Our stock varies over time and we don't stock every size combination.

NOTE: At KO Racing we recommend ordering a gasket thickness that will maintain .040-.045" clearance from the top of the piston to the bottom of the cylinder head. For Example: If you measure the piston at TDC on your short block and it is +.006" out of the bore - order a gasket between .046 and .051" thick to maintain clearance.

NOTE: At KO Racing we recommend ordering a gasket with a minimum of 0.5mm larger bore than your bore on your motor. For Example: if your bore on your block is 87mm, order a gasket with 87.5mm bore or larger.


$160.00 each
Select Thickness:
Select Gasket Bore:
Select Head Stud Size:
