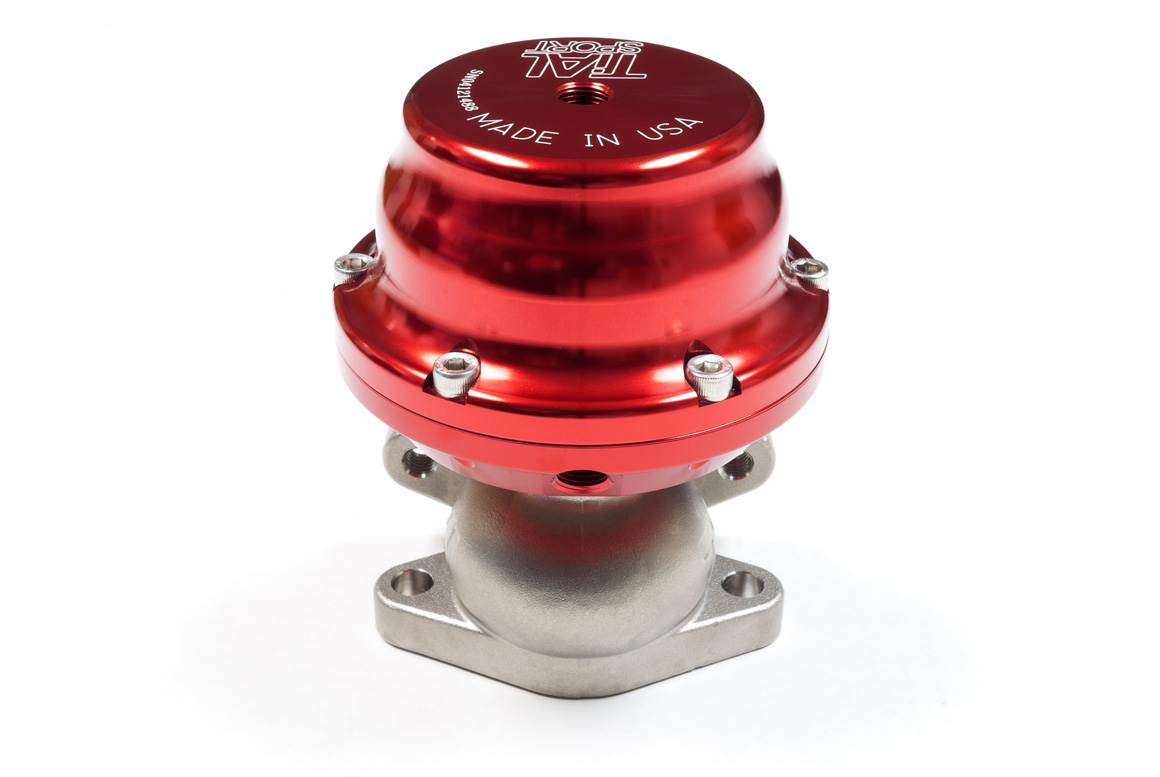

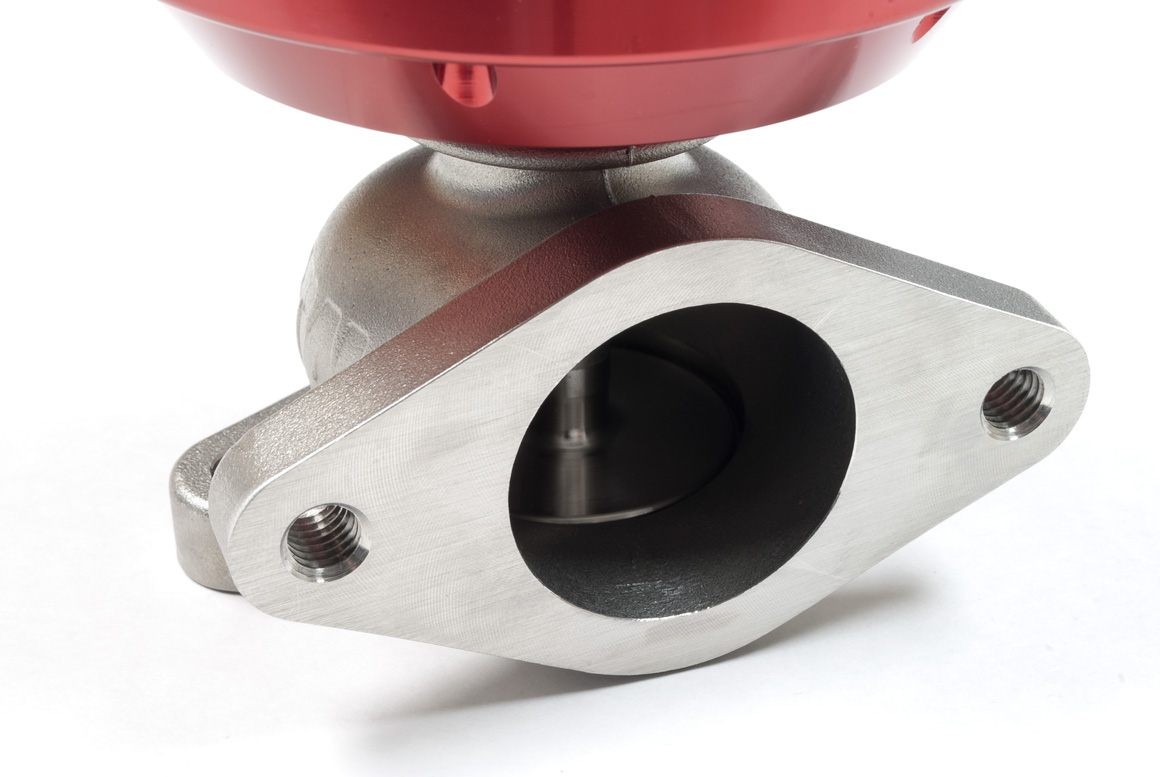

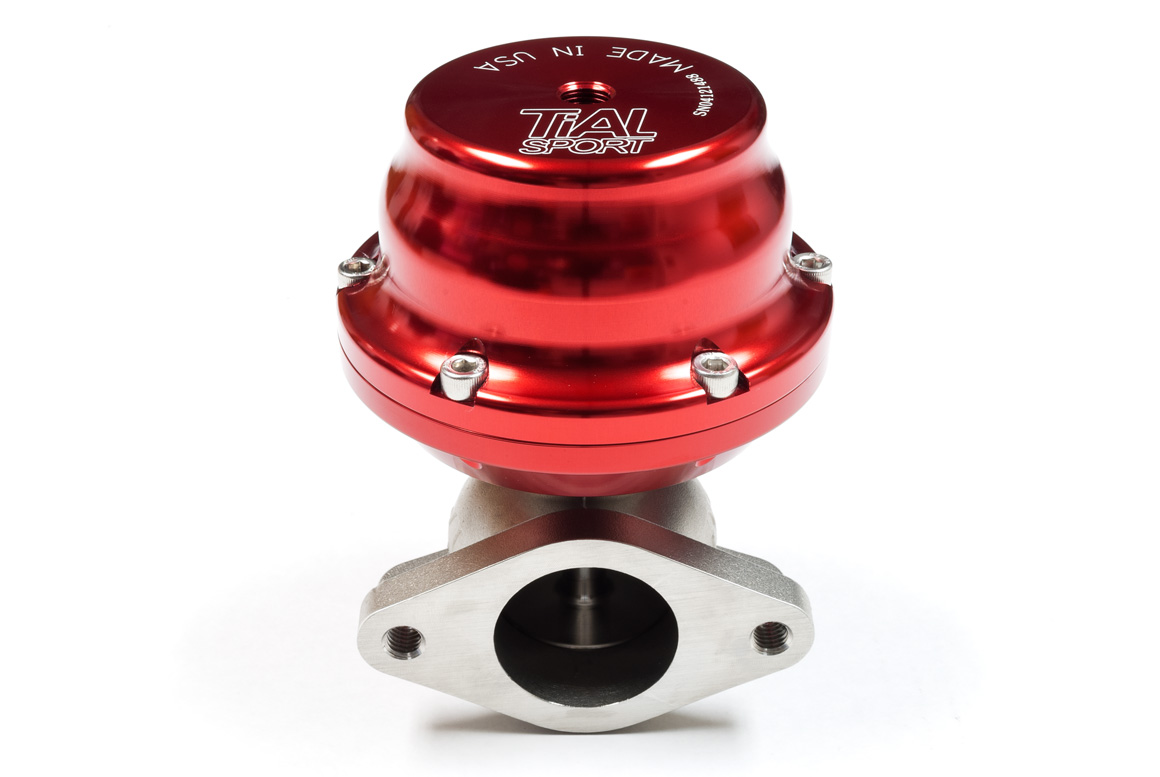

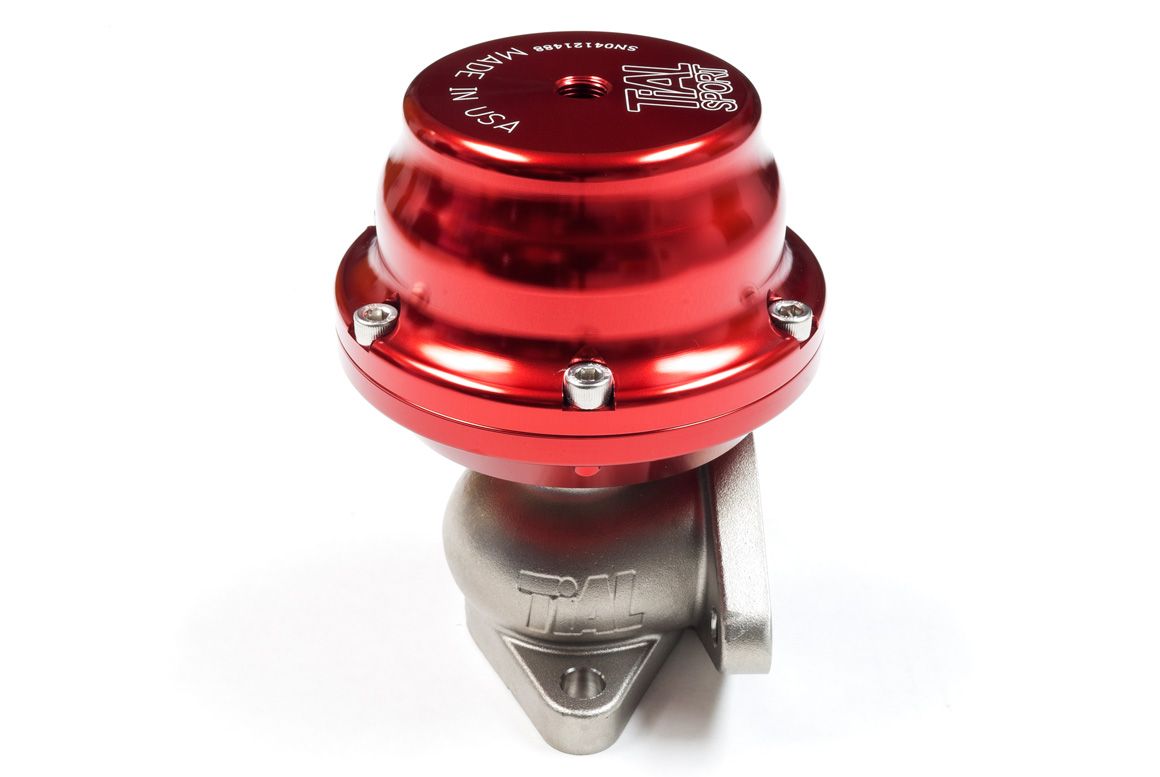

Wastegate Tial 38mm 2-bolt (F38)
KORacing Products » Toyota MR2 MK2 » Turbo Kits & Accessories

The classic 2 bolt flange wastegate. Tial first produced the F38 back in 2001 and it's still going strong today. This wastegate has a 38mm valve - same as the MV-S, and its body is about an inch taller.

38mm valve for good boost control on up to 58mm turbos depending on design of mechanical control system (wastegate priority).

Included with every TiAL F38:
* F38 Assembly
* F38 Valve Seat
* 2 TiAL Air Fittings
* 2 Mounting Bolts
* 1 Spring of your choice of pressures

NOTE: Wastegate spring pressure will be the lowest boost you would be able to achieve with a properly designed boost control system. A good quality boost controller added on to the wastegate system should be able to allow roughly a couple psi more than double the boost from the wastegate spring pressure alone.

Example: Several vehicles tuned here at KO Racing with 10psi springs in the F38 have been able to achieve 22-23psi maximum with the additional of a boost controller and engine management systems.


$300.00 each
Select Top Color:
Select Spring:
