Link CAN Harness for Plug-in ECU
KORacing Products » Toyota MR2 MK2 » Electronics & Tuning
4 or 5 pin harness for adding a can device directly to the Link plug-in ecus. The 5 pin harness is for Plug-in ecus designed before 2021. The 4 pin is for ECUs designed or initial release for purchase after January 2021. Double check your plug-in ecu or contact us if you're unsure which one you need.

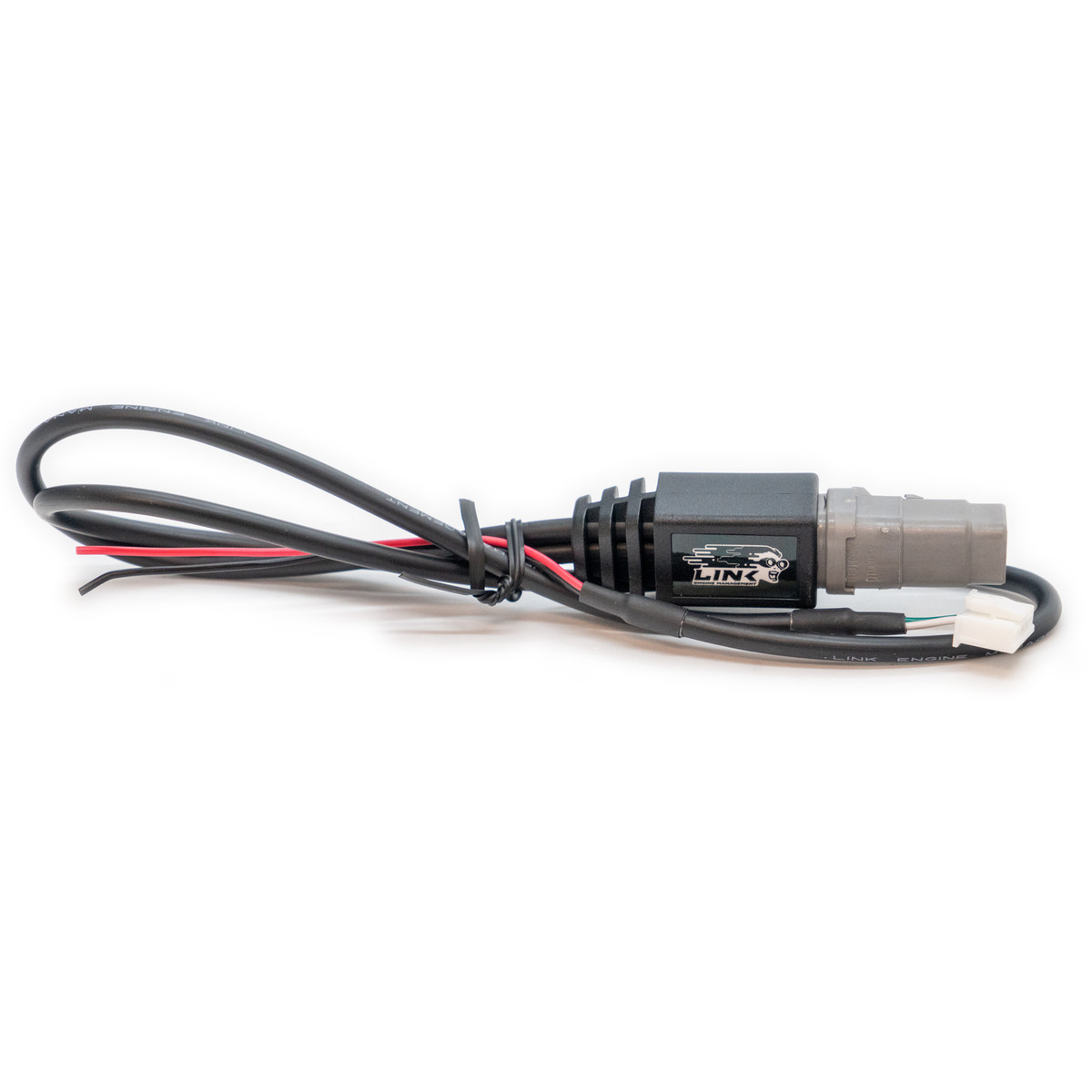

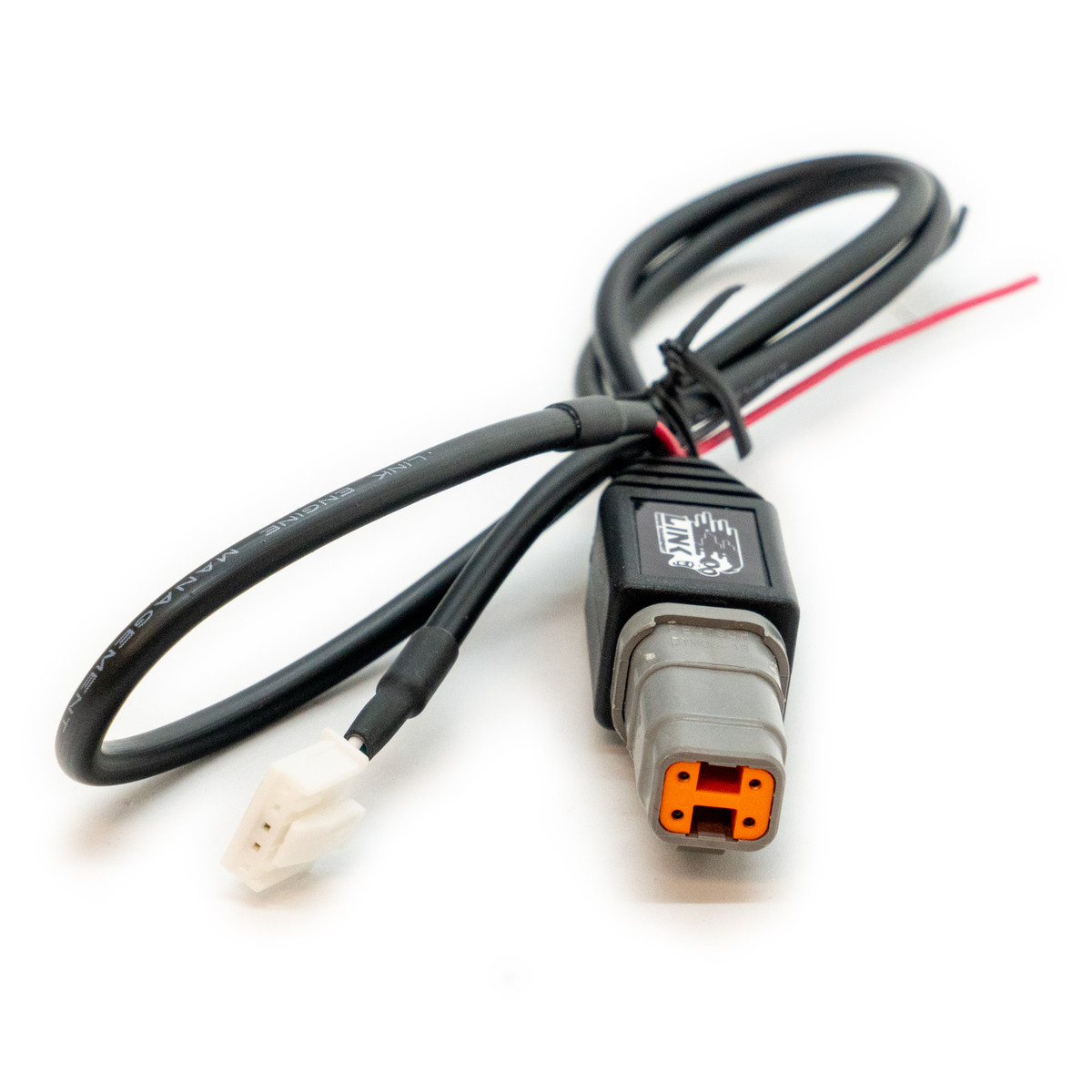

The 5pin has two pins in the 5 pin connector for the CAN H / CAN L, and two wires for 12v switched, and GND going into a 4 pin Deutsch DTM connector. (CANJST)

The 4pin has 4 pins in the connector for CAN H / CAN L, switched 12v, and GND without any other wiring required. (CANJST4)

These models use the 5 pin:

  • Audi/VW 1.8T DBW TTX link
  • BMW 90-93 E36 E36X Link
  • Holden VVL Link
  • Honda Civic HC92X Link
  • Honda Civic HC96X Link
  • Mazda Miata 90-95 MX5X Link
  • Mazda RX7 FD3S Series 7 & 8 RX7S7X Link
  • Mazda RX7 FD3S Series 6 RX7S6X Link
  • Mitsubishi VR4 VR4X Link
  • Mitsubishi Evo1-3 EVO3X Link
  • Mitsubishi Evo4-8 EVO8X Link
  • Mitsubishi Evo9 EVO9X Link
  • Nissan 300ZX N300X Link
  • Nissan 350Z N350X Link
  • Nissan S13-S14 76pin ECU NS13X Link
  • Nissan S13-S15 64pin ECU NS15X Link
  • Nissan GTR Blue ECU Connector NGTRX Link
  • Nissan GTR Grey ECU Connector NGTTX Link
  • Subaru WRX V1-V2 WRX2X Link
  • Subaru WRX V3-V4 WRX4X Link
  • Subaru WRX V5-V6 WRX6X Link *Bottom Board Version 1-1.3*
  • Subaru WRX V7-V9 WRX9X Link
  • Subaru WRX V10 2004-2007 WRX104X Link
  • Subaru WRX V10 2004-2007 WRX107X Link
  • Toyota Altezza TALTX Link
  • Toyota MR2 V1/Celica ST185 TST185X Link
  • Toyota MR2 V2-V3/Celica ST205 TST205X Link
  • Toyota Supra MK4 TS2JZX Link
  • Toyota Chaser JZX100 w/ 1JZGTE JZX100X Link
  • Toyota Land Cruiser FZJ100 FZJ100X Link

    These Models use the 4 pin:

  • Honda S2000 AP1 S2000X Link
  • Honda Civic/DC5 Integra K20X Link
  • Mazda Miata NB1 MX5NB1X Link
  • Mazda Miata NB2 MX5NB2X Link
  • Subaru WRX V5-V6 WRX6X Link *Bottom Board Version 1.4+*
  • Toyota Chaser/Soarer 1JZGTE (non-VVTi) JZX90X Link

    $50.00 each
    Select CAN Harness:
    •
