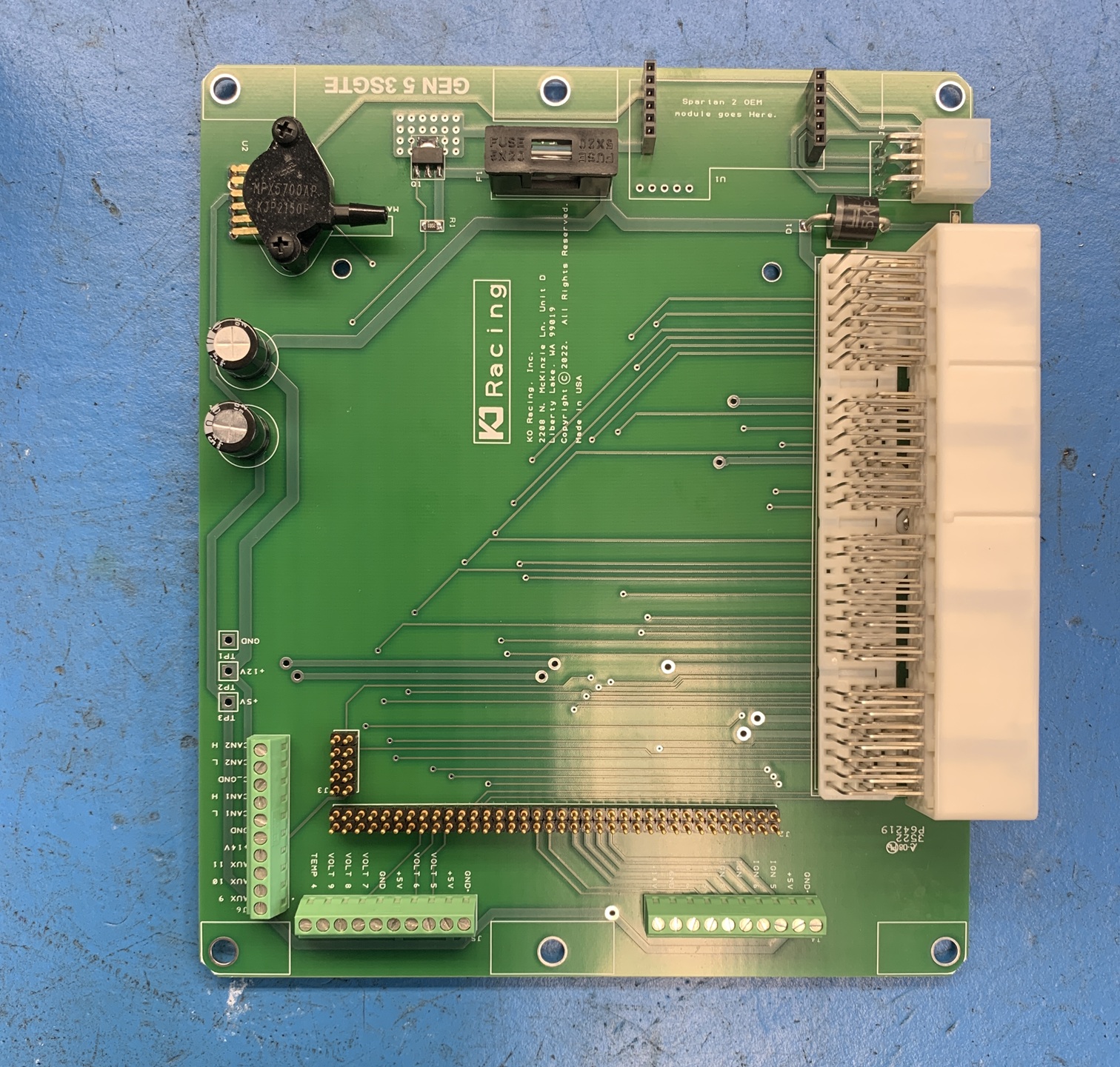

Beyond being a basic pinout and connector interface to allow the option to "plug and play" with the Link ecu, we have gone a step further by integrating the necessary design features to allow to add an on-board 4 or 7 bar map sensor and on-board wideband with ecu programmable on/off control. Using these options can cut down on installation complexity, and time dramatically. Installation can become virtually as simple as running a wideband sensor and cable to the ecu, and running a vaccum line to the ecu from the intake manifold. Plug in your USB cable, plug in the ecu into the car and start tuning.

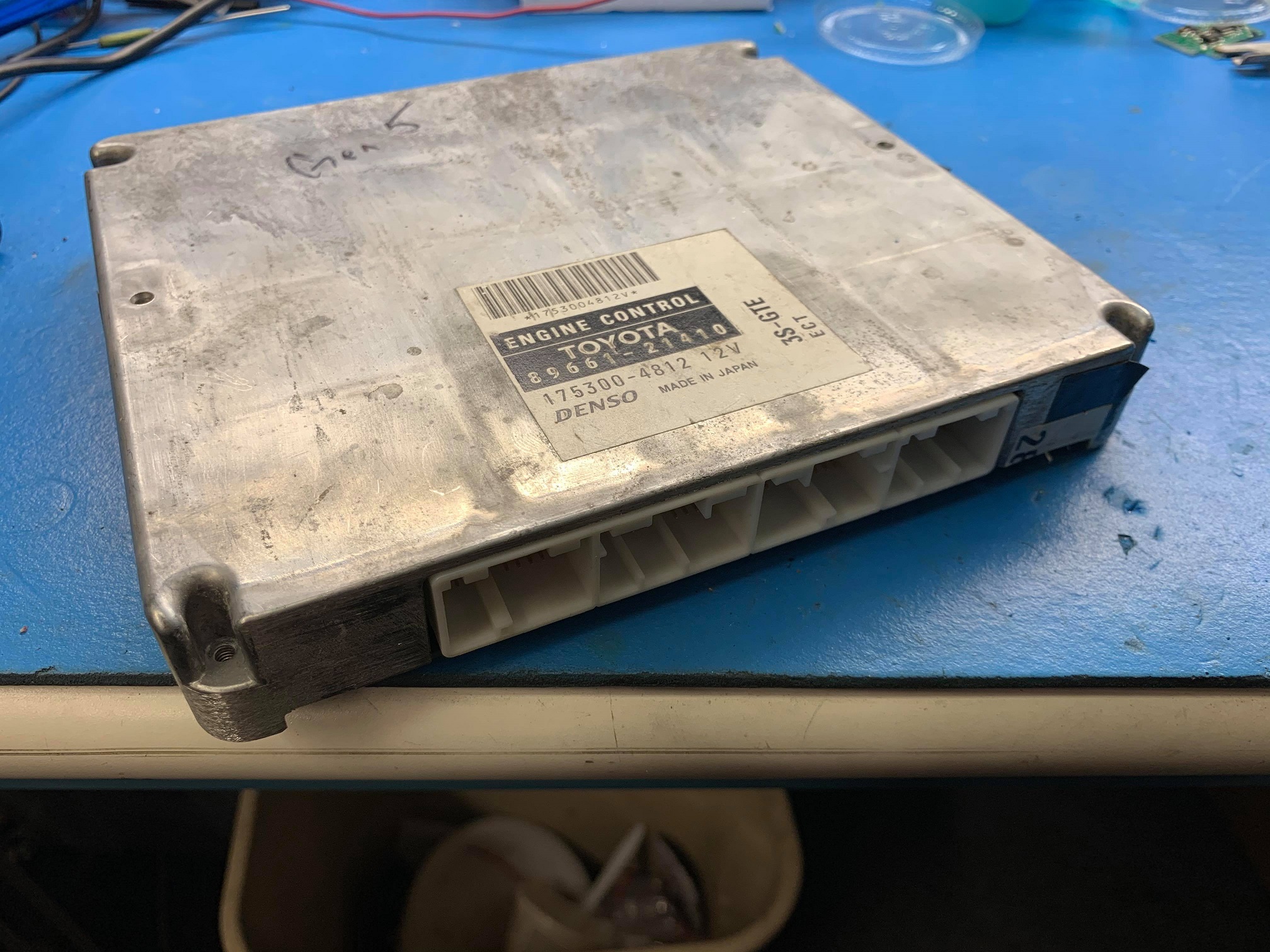

Directly bolts into the 3SGTE Caldina 4th Generation engine control unit case
NOTE: This product is intended for tuning manual transmission vehicles and includes no provisions for automatic transmission control. It is intended primarily for vehicles that have swapped in the ST246 Caldina 3SGTE engine or ST246 Caldina ecu and engine control wiring. This ecu does not have Automatic transmission control and is only for manual transmission vehicles without ECU based transmission control.
NOTE: ECU and case *NOT* included with adapter board purchase as shown in images above. You must reuse and modify your case to allow for wiring to pass through the case, and this does require purchasing a separate Link Plug-In ECU to use with this board.
NOTE: This product is intended for tuning manual transmission vehicles and includes no provisions for automatic transmission control. It is intended primarily for vehicles that have swapped in the ST246 Caldina 3SGTE Gen 5 engine or ST246 Caldina ecu and engine control wiring.
NOTE: This is *NOT* a LINK ECU tested, verified, and warranted product. Use of this product may void your warranty with Link, and give them grounds to refuse any support. Purchase of this product constitutes your consent with, and understanding of these statements. This is a custom adapter product that can make use of a Link plug-in product. Please let KO Racing know if you have any questions or concerns, or require any support for our adapter board, as Link will not support you when using this product.
KO Racing is not directly affiliated with LINK or LINK ECU in any way, and are making this product available to expand the possibilities of the Link ECU Product line to a wider consumer base.
*Recommeded*: Purchase a Link G4X Plug-in For a Miata MX5, or Mitsubishi VR4, or Mitsubishi Evo 1-3, or Subaru WRX V1 or V2 to use with this adapter board. These are available on our site Here.
$500.00 each
Add Wideband on-board:
