KO Racing 1NZFE Scion xB Adapter for Link Plug-In
KORacing Products » *KO Racing ECU Adpater Boards*

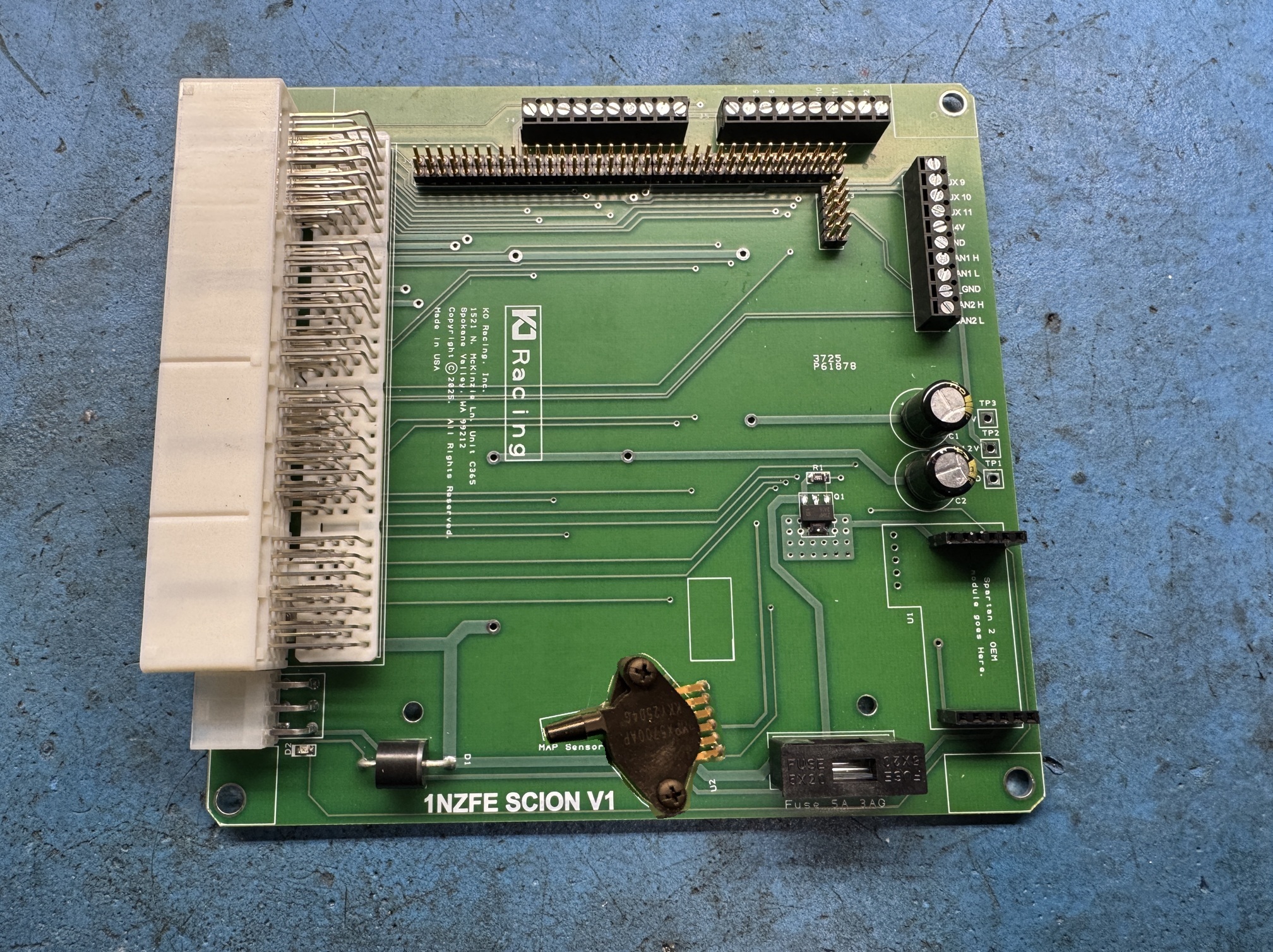

KO Racing 04-05 Scion xB Adapter PCB

Finally a fully integrated Plug-In EMS option for 2004-2005 Scion xB vehicles equipped with the 1NZ-FE engine and manual transmission when combined with a Link Plug-In ECU (sold separately). Link does not currently offer a dedicated plug-in ECU solution for the first-generation Scion xB. This has traditionally left enthusiasts with the option of adapting a wire-in ECU or modifying an ECU from another application to work with the factory Scion engine harness and ECU connectors. KO Racing has developed an adapter board that allows the control/logic board from a compatible Link Plug-In ECU to be installed directly into the factory Scion xB ECU case, providing a clean, professional engine management solution while retaining factory-style wiring connections.

Beyond serving as a simple connector and pinout interface, we have integrated additional features designed to simplify installation and reduce wiring complexity. Provisions are included for optional onboard MAP sensor and wideband integration, allowing many common standalone ECU installations to be completed with significantly less wiring and fabrication work. Installation can be as simple as connecting a vacuum source, routing a wideband sensor cable, plugging the ECU into the factory harness, and connecting your tuning laptop.

NOTE: We strongly recommend adding a fuel pressure sensor to all Link ECU installations to take advantage of the fuel pressure compensation features available within the Link ECU platform. Get one here.

Features:

  • Fully compatible with Link G4+ and G4X Plug-In ECU controller boards
  • Designed specifically for 2004-2005 Scion xB 1NZ-FE manual transmission applications
  • Three (3) 10-pin expansion connectors with convenient screw-terminal connections for adding sensors, inputs, outputs, and auxiliary devices
  • Supports drive-by-wire throttle control when used with compatible Link ECU hardware
  • Provision for optional 4-bar or 7-bar onboard MAP sensor installation
  • Optional: Integrated 14point7.com Spartan2 OEM LSU4.9 onboard wideband controller
  • Allows use of factory ECU connectors and engine harness
  • Designed to fit within the factory Scion xB ECU enclosure

    NOTE: Price does NOT include a Link Plug-In ECU control board or ECU case, but does include a base startup calibration for the 1NZ-FE engine. The startup calibration is intended only to get the vehicle started and running. Final tuning by a qualified tuner is strongly recommended. Failure to properly calibrate the ECU can result in poor drivability or engine damage.

    NOTE: This product is intended for manual transmission vehicles only. Automatic transmission functionality is not supported by this adapter board.

    NOTE: ECU case is not included with adapter board purchase unless otherwise specified. Customers must reuse and modify their factory ECU case as required for expansion wiring and optional features.

    NOTE: This is NOT a Link ECU tested, verified, or warranted product. Use of this product may void your warranty with Link and may result in Link declining technical support. Purchase of this product constitutes acceptance and understanding of these conditions. This is a custom KO Racing adapter product designed for use with compatible Link Plug-In ECU hardware. Please contact KO Racing with any questions or support needs related to the adapter board, as Link will not provide support for custom adapter installations.

    KO Racing is not affiliated with Link ECU in any way. This product is offered to expand the capabilities and applications of the Link ECU product line to vehicle platforms not directly supported by Link.

    *Recommended*: Use a compatible Link G4X Plug-In ECU as the donor control board for this adapter. Compatible Link Plug-In ECUs are available from KO Racing here.


    $500.00 each

    Add Wideband On-Board:
  •
